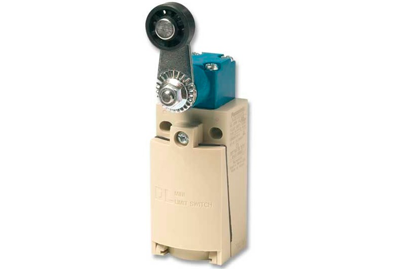

คุณสมบัติ

Load		Resistive load (COSϕ = 1)	Inductive load (COSϕ = 0.1)
AC	125V	6A	6A
	250V	6A	6A
	380V	6A	3A
DC	24V	5A	2.5A
	60V	1.5A	1.5A
	220V	0.3A	0.3A

Note : When DC voltage is applied, the time constant is (T=) 0ms for resistive load, (T=) 100ms or less for inductive load.

Characteristics
Contact arrangement		1 Form A 1 Form B
Initial contact resistance, max.		25mΩ (By voltage drop of 5 to 5 VDC 1A)
Contact material		AgCdO
Initial insulation resistance (At 500VDC)		Min. 100MΩ
Initial breakdown voltage		1,000Vrms for 1 min Between non-consecutive terminals 2,500Vrms for 1 min Between dead metal parts and each terminal 2,500Vrms for 1 min Between ground and each terminal
Shock resistance	Functional	Max 294 m/s2 (equivalent 30G) (note 1)
	Destuctive	Max 980 m/s2 (equivalent 100G)
Vibration resistance		10 to 55Hz, double amplitude of 1.5mm
Expected life (min. operations)	Mechanical	107 (at 120 cpm)
	Electrical	1.5 x 105 (at 20 cpm, 6A 380VAC resistive load)
Ambient temperature		-30 to 80°C (-22 to 176°F) (but not in a frozen environment)
Ambient humidity		Max 95%RH (without dew at 40°C (104°F))
Max operating speed		120 cpm

Note : The rating, chaeacteristics and operating characteristics are based are on the bassic mpdel.
Note 1 : This value applies when the arm length of the adjustable roller arm (50 dia. rubber roller) is 70 mm or less

EN60947-5-1 performance

Item	Rating
Rated insulation voltage (Ui)	250VAC
Rated impulse withstand voltage (Uimp)	2.5kV
Switching overvoltage	2.5kV
Rated enclosed thermal current (Ithe)	6A
Conditional short-circuit current	100A
Short-circuit protection device	10A Fuse
Protective construction	IP67 (Note 1)
Pollution degree	2

Note 1 : Adjustable roller arm (50 dia. rubber roller) type is IP65.

Operating characteristics

Characteristics	O.F. (N{gf}) max	R.F. (N{gf})min	Pretravel(PT) max mm inch	Movement diferential (MD) max mm inch	Overtravel (OT) min mm inch	Operating Position (OP) mm inch
Push plunger	6.37 {650}	1.47{150}	2 .079	1.2 .047	4 .157	18±0.5 .708±020
Roller plunger	6.37 {650}	1.47{150}	2 .079	1.2 .047	4 .157	28±1 1.102±03
Roller arm	4.90{500}	0.49{50}	20° to 26°	14°	30°	-
Roller level	3.92{400}	0.78{80}	4 .157	1.6 .063	5 .197	-
Adjustable roller arm (Note)	4.90{500}	0.49{50}	20° to 26°	14°	30°	-
Adjustable roller arm (50 dia. rubber roller)	4.17 {425}	0.42 {43}	20° to 26°	14°	30°	-
Adjustable rod (2.6 dia)	4.90{500}	0.49(50)	20° to 26°	14°	30°	-
Roller level (vartical action)	4.41 {450}	0.88{90}	4 .157	1.7 .067	5 .197	27±0.8 1.063±031

Note
- The above values of adjustable roller arm shows the values when roller length is set at 26mm same as roller type.
- The value of adjustable roller arm (50 dia. rubber roller) type shows the value when roller length is set at 32 mm.
- The value of adjustable rod (2.6 dia.) type shows the value when length of rod is set at 26 mm same as the roller arm type.

Protective characteristics

Protective construction	DL mini limit switches
IEC
IP60	○
IP64	○
IP67	○(Note 1)

Note 1 : The value for protective function characteristics is the initially set value. Also adjustable roller arm (50 dia. rubber roller) type is IP65
The switches are compatible with DIN EN50047.
