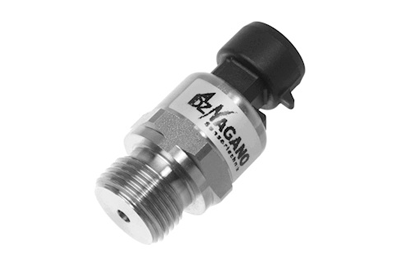

เซนเซอร์แปลงความดัน Pressure Transmitter
รุ่น SIS
คุณลักษณะ
For its short design, it can be applied in largely confined space for installation. The SIS series distinguishes itself by a high degree of variability of both the electrical and mechanical connecting options. Moreover, its proven modular concept provides for use of the most common types of signals in industry and it also allows manufacture at reasonable cost, also in small batches.
- Measuring ranges 0…0.6 bar to 0…40 bar
- Standard signals for the industry, hydraulics and pneumatics
- Plug systems MVS/A acc. to DIN EN 175301-803 A, MVS/C acc. to DIN EN 175301-803 E
- NEW >>> small design ~ max. 50 mm in length
- NEW >>> large variety of electrical connections
| Pressure Range | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range* | p [bar] | 0,6 | 1,0 | 1,6 | 2,0 | 2,5 | 4,0 | 6,0 | ||
| - Overload pressure | p [bar] | 6 | 6 | 6 | 6 | 6 | 10 | 20 | ||
| - Burst pressure | p [bar] | 9 | 9 | 9 | 9 | 9 | 15 | 30 | ||
| Measuring range* | p [bar] | 10 | 16 | 20 | 25 | 40 | ||||
| - Overload pressure | p [bar] | 20 | 40 | 40 | 100 | 100 | (Vacuum, relative pressure, +- or absolute pressure are available) | |||
| ELECTRICAL PARAMETER | ||||||||||
| signal | US [VDC] | RL [kΩ] | RA[Ω] | |||||||
| Output signal* and | RA in Ohm | 4...20mA | (2-wire, 3-wire) | 9...32 | acc to RA =<(US - 10V) 0,02 A | |||||
| Maximum acceptable burden | RA | 0...10VDC | (3-wire) | 12...32 | >5,0 | |||||
| 1...5VDC | 8...32 | >1,0 | ||||||||
| & | 0,5...4,5VDC | ratiometris | 5±10% | >4,7 | ||||||
| Response time* (10...90%) | t [ms] | <1 | ||||||||
| withstand voltage | U[VDC] | 350 | ||||||||
| ACCURACY | ||||||||||
| Accuracy @ RT | % of the range | ≤1,00** | Option ≤0,50 | ** incl. nonlinearity, hystersis, repeatability, zero-offset-and final-offset (acc. to IEC 61298-2) | ||||||
| BFSL | ≤0,25 | |||||||||
| Non-lineearity | % of the range | ≤0,15 | ||||||||
| Repeatability | % of the range | ≤0,10 | ||||||||
| Stability/year | % of the range | ≤0,10 | ||||||||
| ACCEPTABLE TEMPERATURE RANGES | ||||||||||
| Measuring medium | T [℃] | -40...105 | ||||||||
| Ambience | T [℃] | -40...85 | ||||||||
| Storage | T [℃] | -40...105 | ||||||||
| Compensated range* | T [℃] | -10...70 | ||||||||
| Temperature coefficient within the conpresated range | ||||||||||
| Mean TC Offset | % of the range | ≤ 0,15/10K | ||||||||
| Mean TC range | % of the range | ≤ 0,15/10K | ||||||||
| Total error | % of the range | -40℃ 3,00% | ||||||||
| % of the range | 85℃ 2,00% | 125℃ 2,00% | ||||||||
| MECHANICAL PARAMETER | ||||||||||
| Parts in contact with the measuring medium* | silicon, stainless steel, brass, plastic | |||||||||
| Housing* | silicon, stainless steel, brass, plastic | |||||||||
| Shock resistance | g | 1000 | acc.to IEC 68-2-32 | |||||||
| Vibration resistance | g | 20 | acc.to IEC 68-2-6 and IEC 68-2-36 | |||||||
| Mass | m [g] | 80-120 (depending on design) | ||||||||
| CE - conformity | EC Directive 89/336/EWG | |||||||||
| IP system of protection |
The IP fo protection as specified in the data sheets generally applies, with their mating plug connected. |
|||||||||
| *others upon request |
conpensation. From a pressure range of 60bar, a centilated mating plug and/or cable is not necessarily reqiured. |
|||||||||
